Bucket Elevator Systems
Advanced vertical conveying systems upgraded from DT and TH series. Ideal for cement, coal, sand and gravel, chemicals, and grain industries with lifting heights up to 80 meters.
160-1600mm
Up to 80m
Key Advantages
High Capacity
Large volume transport with optimized bucket design
High Lift Height
Capable of vertical lifting up to 80 meters
Compact Structure
Space-saving design with minimal footprint
Smooth Operation
Flexible drive with hydraulic coupling for stable performance
Long Service Life
Durable components with low maintenance requirements
Intelligent Control
Advanced monitoring and control systems for optimal performance
Real-World Applications

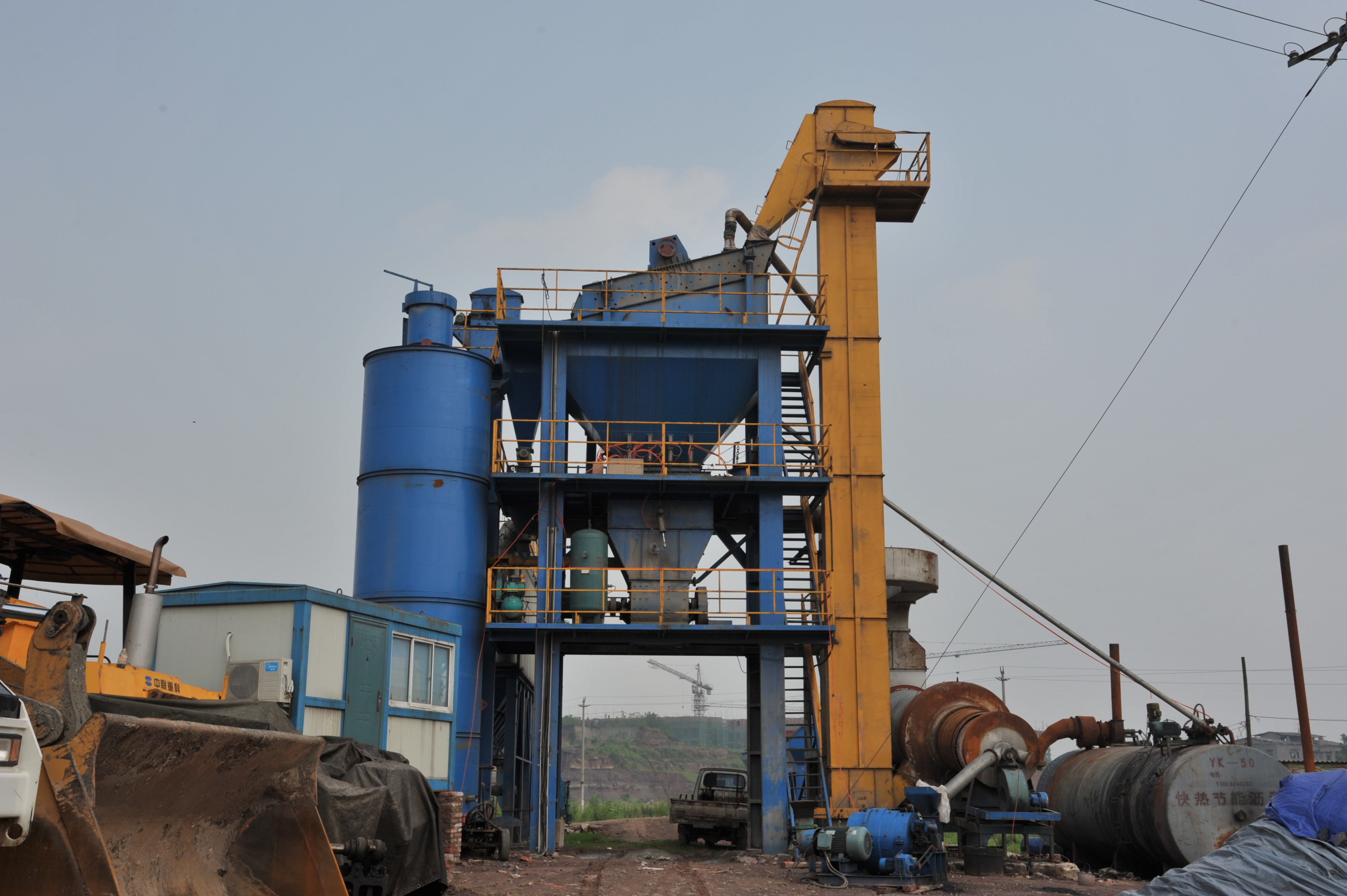

Cement Plant in Thailand
High-capacity clinker handling system
Technical Information
Comprehensive technical specifications for TDG and THG bucket elevator systems
Design Features
The TDG and THG bucket elevators feature a vertical-shaft gearbox and hydraulic coupling, resulting in a compact structure with smooth operation and flexible power transmission that protects the motor, gearbox, and drive components.
- β’Level sensor and speed controller integrated at tail section
- β’Central control room monitoring capability
- β’Real-time elevator operational status monitoring
Structural Benefits
The head, middle, and tail casings are fully enclosed to prevent material spillage and dust emission, reducing environmental pollution. The modular design allows for easy maintenance and component replacement.
- β’Fully enclosed design prevents contamination
- β’Modular construction for easy assembly
- β’Reduced noise levels during operation
Need Vertical Material Handling Solutions?
Our bucket elevator systems provide efficient vertical transport for various bulk materials
