Pipe Belt Conveyor Systems
Advanced enclosed belt conveyor system designed to overcome limitations of traditional conveyors. Ideal for environmentally sensitive applications and complex routing requirements.
20-400mm
100-850mm
Key Advantages
Environmental Protection
Fully enclosed transport prevents material spillage and dust pollution
Flexible Layout
Can navigate around obstacles with horizontal and vertical curves
Large Incline Capability
Capable of steep angle transport up to 30 degrees
Long Distance Transport
Suitable for high-volume long-distance material transport
Low Maintenance Cost
Simple structure with fewer components requiring maintenance
High Economic Efficiency
Lower investment and operation costs compared to alternatives
Real-World Applications

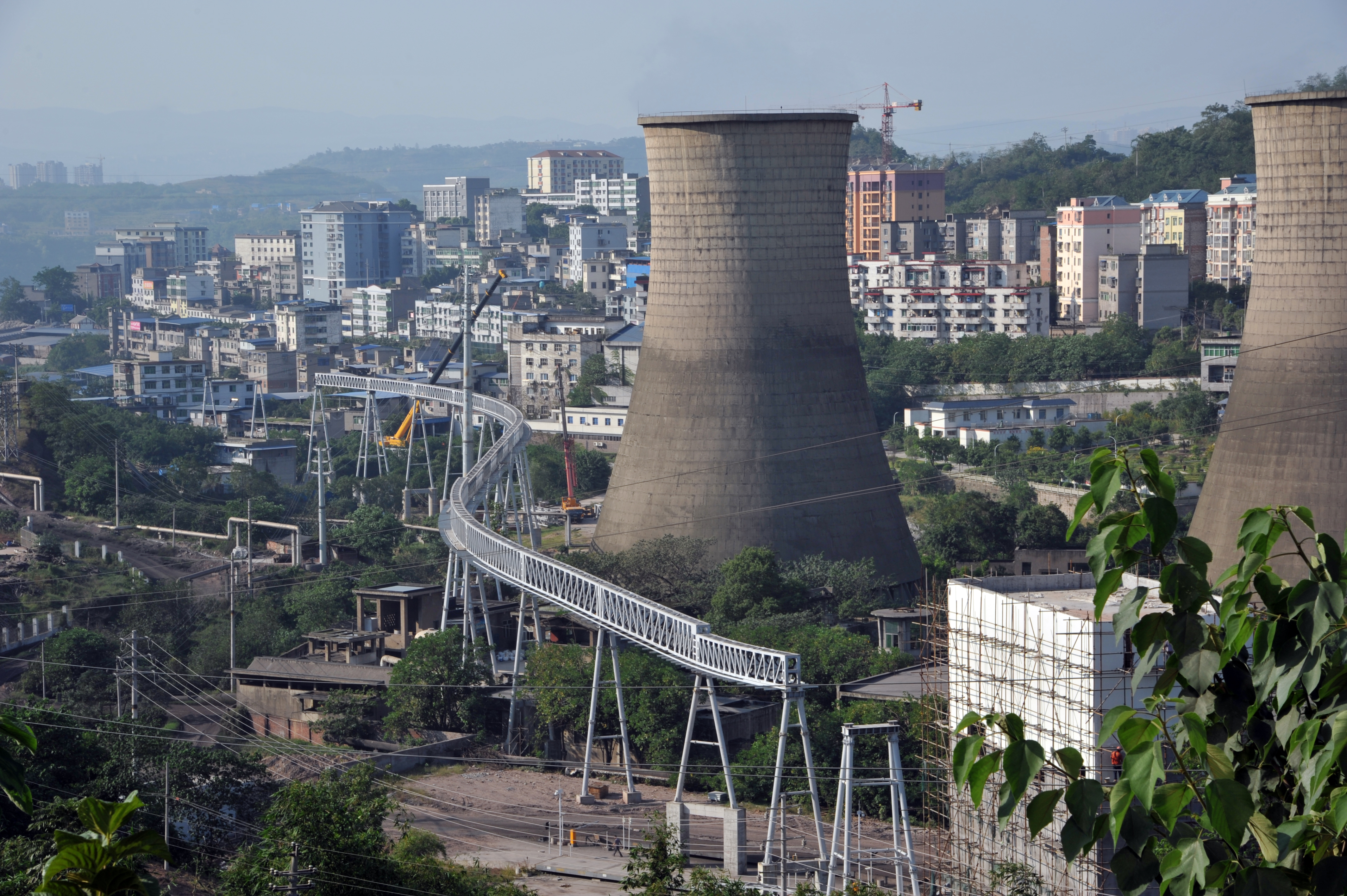

Power Station in Chongqing, China
Quiet, eco-friendly urban pipe conveyor system.
Technical Information
Comprehensive technical parameters and specifications for pipe belt conveyor systems
Functional Principle

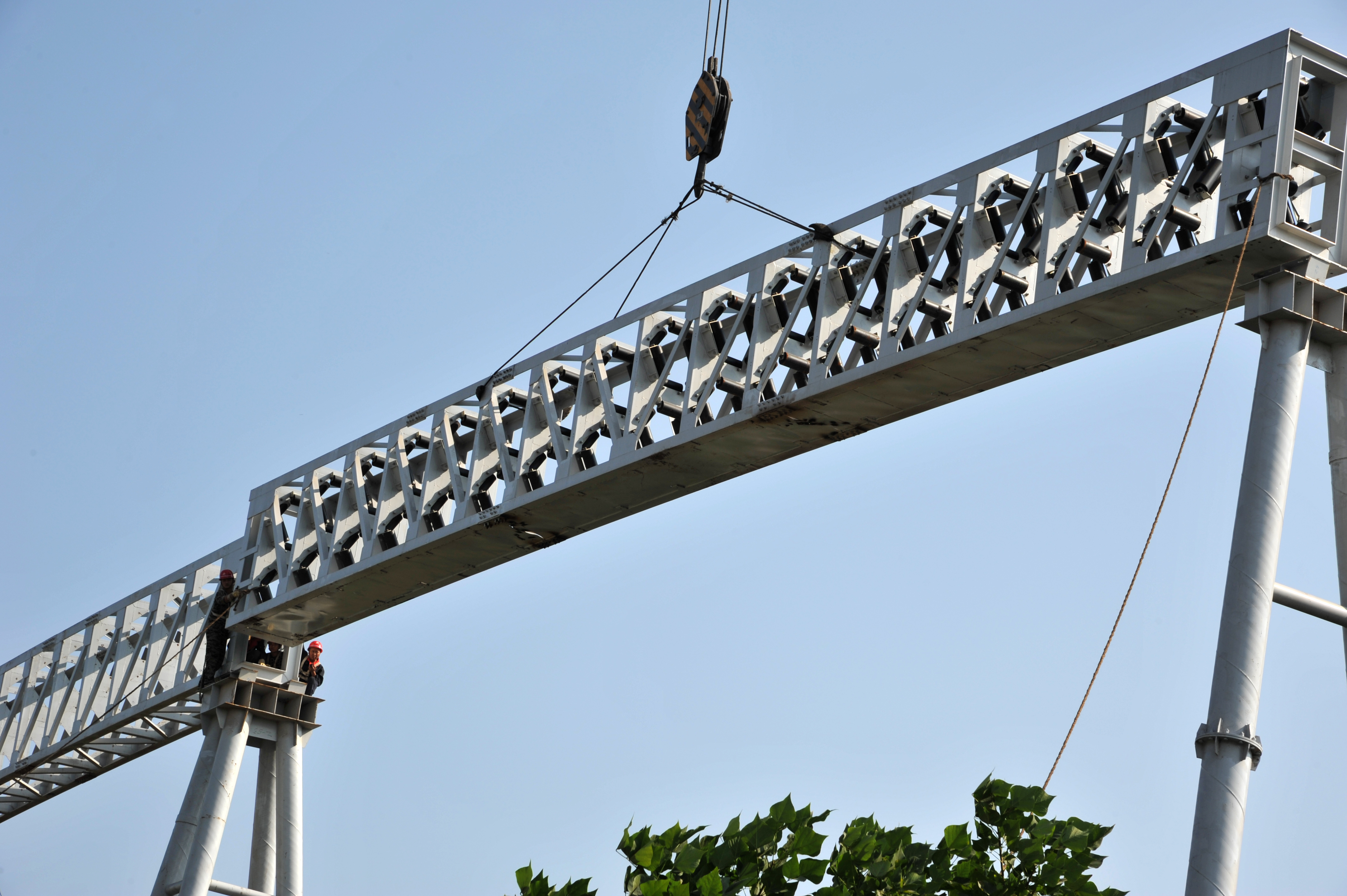

The conveyor operates via friction between idler sets arranged at specific intervals along the belt, which shape it into a tubular form. This design enables material transport through complex terrains and discharge at designated points.
By inverting the belt or installing special feeding devices, the return branch of the tubular belt can also be used to convey materials in the reverse direction, maximizing system efficiency.
Environmental Benefits
The enclosed design prevents material spillage and dust emission, making it ideal for transporting environmentally sensitive materials or operating in areas with strict environmental regulations.
This system significantly reduces cleanup costs and environmental impact compared to traditional open belt conveyors, while providing protection from weather elements.
Ready to Upgrade Your Material Handling?
Our pipe belt conveyor systems offer superior environmental protection and routing flexibility
