Large-Angle Corrugated Sidewall Belt Conveyor
Superior performance conveyor system designed for steep incline material transport. Ideal replacement for chain conveyors and bucket elevators with angles up to 90Β°.
30Β°-90Β°
400-1600mm
Key Advantages
Large Allowable Inclination
Capable of conveying at angles from 30Β° to 90Β° vertical
Compact Structure
Space-saving design with minimal footprint requirements
Small Footprint
Reduces land usage and civil engineering requirements
Cost Effective
Reduces equipment quantity and civil engineering costs
Smooth Operation
Stable material transport with minimal spillage
Low Noise & Energy
Quiet operation with low energy consumption
Real-World Applications

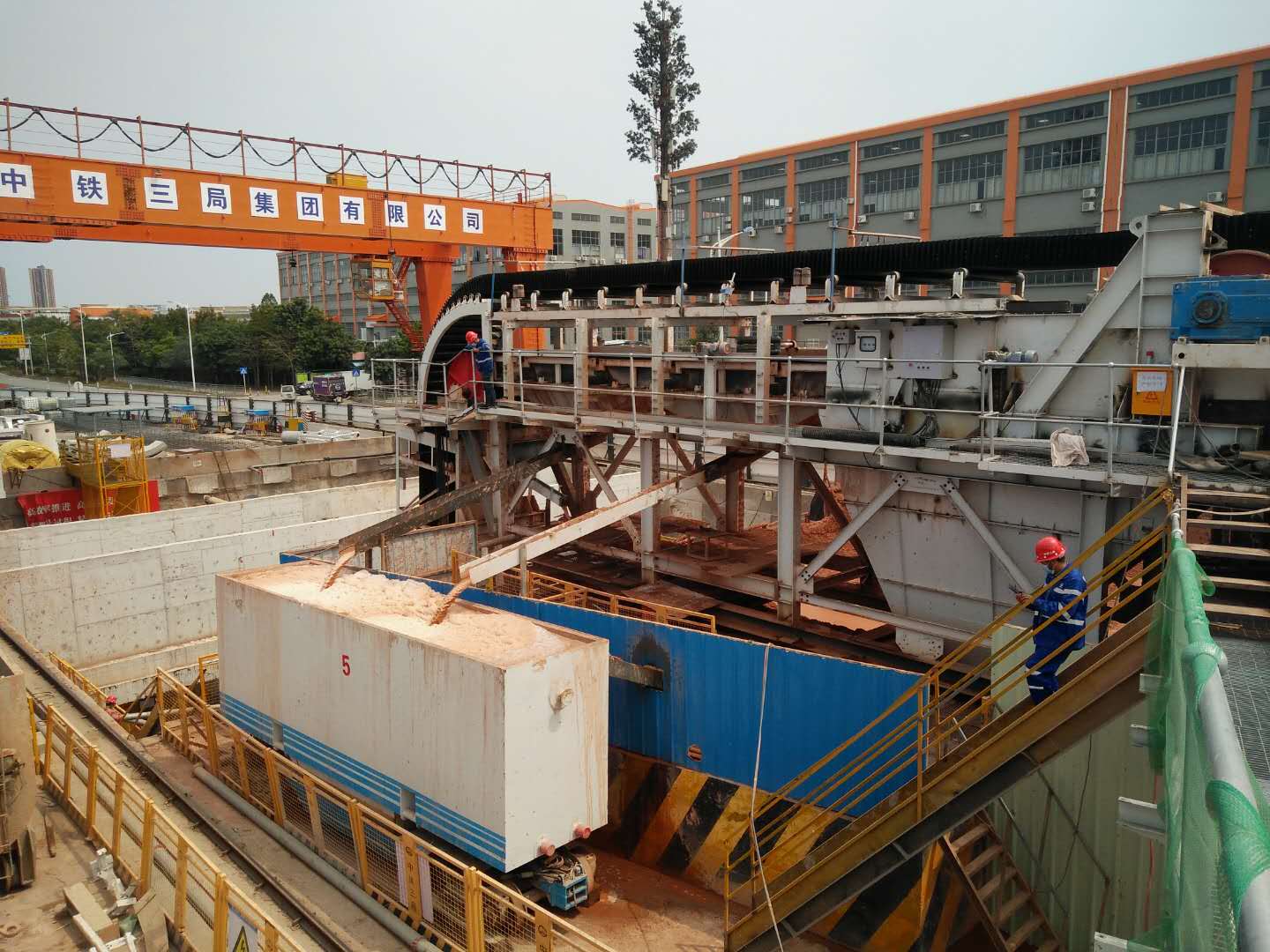

Metro Tunnel in Guangdong, China
Vertical lift system for construction stone extraction
Technical Information
Comprehensive technical specifications for large-angle corrugated sidewall belt conveyor systems
Design Features
The DJ Series conveyor combines corrugated sidewalls and transverse cleats to enable material transport at steep angles from 30Β° to 90Β° vertical. This innovative design eliminates material rollback and spillage.
- β’Corrugated sidewalls prevent material spillage
- β’Transverse cleats hold material during steep incline
- β’Flexible routing adapts to space constraints
Applications
Widely used across industries requiring vertical or steep angle material transport, particularly in space-constrained environments.
- β’Mining and mineral processing
- β’Ports and terminal operations
- β’Construction materials handling
- β’Chemical and fertilizer industries
Need Steep Angle Material Handling?
Our DJ Series conveyors provide efficient vertical transport solutions for your facility
